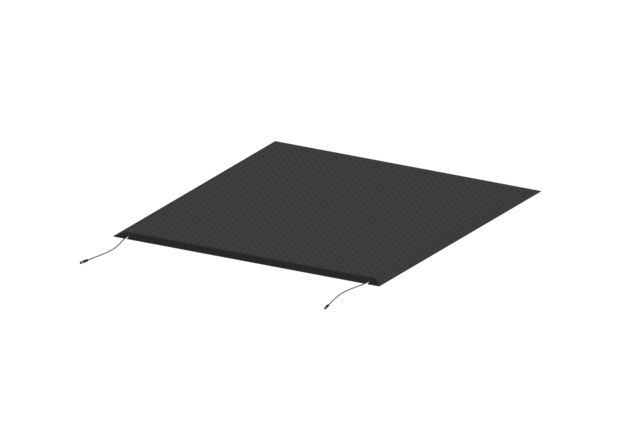

SENTIR mat 1000mm x 1000mm
Ölçüler:
L 1000 mm x W 1000 mm x H 14 mm
Ağırlık:
Yaklaşık 25 kg/m²
Koruma sınıfı:
IP65
Özellikler
| Type | SENTIR mat 1000mm x 1000mm |
| Dimension | 3.28 ft x 3.28 ft |
| Height | 0.55 in with top |
| Weight | ca. 48.5 lbs (without coat) |
| Inactive edge | max. 0.39 in rotary |
| Switching pressure | cylindrical object 3.15 in = ca. 33.72 lbf |
| Static weight | max. 449.62 lbf on 3.15 in * |
| Response time | max. 25 ms* |
| Switching cycle | min. 10 Mio. * |
| Electrial strength | 24 V 100 mA |
| Grout | polyurethane black |
| Protection class | IP 65 |
| Chemical resistance | oil, fat |
| 10% acids | |
| 10% leaches | |
| Maintenance | The mat is maintenance-free |
| An annual functional testing is recommended | |
| Connection cable | 2 x 0.34 cable sheathing of black PU |
Aksesuarlar
| Ramp rail (RS 14) | Article nr. | 603001 |
| Mounting rail (BS 14) | Article nr. | 603003 |
| Corner connector (EVA) | Article nr. | 603020 |
| Connecting cable |
